Double Chamber Pulveriser Machine

(0) 0 Reviews 0 Orders 0 Wish listed

₹1.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

The reason why we are unable to provide price information is due to daily price increases. Please collect the price information from GCD Mart when you purchase the product.

Application

Spice Industry
Pharmaceutical industries
Food industry
Plastic industry
Coal processing industry

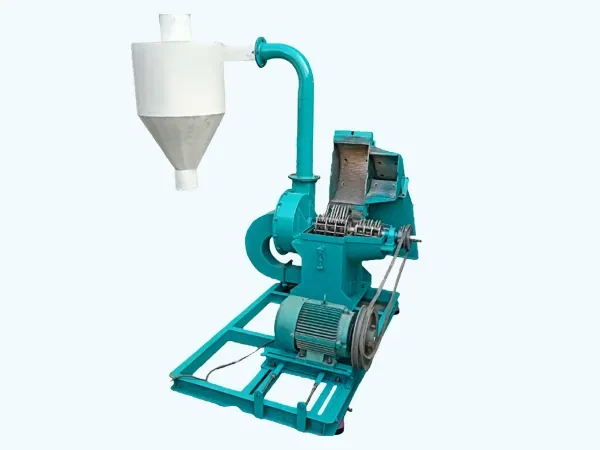

Double Chamber Pulveriser Machine

Characteristics

Swing hammer type with multi row of well-balanced special type of hammers mounted on heavy duty M.S. disc Centrifugal blowers are lined with replaceable M.S. lining plates.

The main driving shaft (EN-8) runs on a pair of heavy duty self-aligning ball/rollers bearing fitted in dust proof bearing housings. The M.S. Hammers are of special type and are duly balanced and hard faced with special electrodes.

The bottom half of the Hammer Mill has a special type of replaceable screen for required output size (fineness).

A manual feeder is provided for regular feed. Cyclone Air Separator complete with connecting pipes and angle iron frame for cyclone. A static type dust collector top & bottom without angle iron frame to collect fines.

Complete Hammer Mill with bottom cone M.S. channel Frame for its mounting, but without electric motor, ‘V’ belts or any kind of electrical fittings.

Materials’ which are Grind / Pulverized by Double Chamber Hammer mill

Spices, Asphalt, Glue, Coffee, Light Mineral, Gelatine, Rise Husk, Malt, Alfalfa, Mullein, Vegetable, Roots, Thyme, Animal Feed, Tobacco, Cereals, Herbs, Soya Beans, Coffee Seed, Dye Stuff.

Technical Specification

Pulveriser Size		Required HP	Capacity Per Hour	R. P. M.	Material
6″ x 6″	6″ x 10″	3	15 – 20 KG	2880	MS & SS
6″ x 10″	6″ x 10″	5	30 – 50 KG	2880	MS & SS
6″ x 10″	6″ x 14″	7.5	60 – 70 KG	2880	MS & SS
6″ x 10″	6″ x 16″	10	80 – 90 KG	2880	MS & SS
6″ x 10″	6″ x 18″	15	100 – 125 KG	2880	MS & SS
8″ x 10″	8″ x 16″	20	150 – 180 KG	2880	MS & SS
8″ x 10″	8″ x 18″	25	200 – 250 KG	2880	MS & SS
8″ x 10″	8″ x 20″	30	250 – 300 KG	2880	MS & SS
10″ x 10″	10″ x 20″	40	300 – 350 KG	2880	MS & SS
10″ x 10″	12″ x 24″	50	400 – 480 KG	2880	MS & SS
